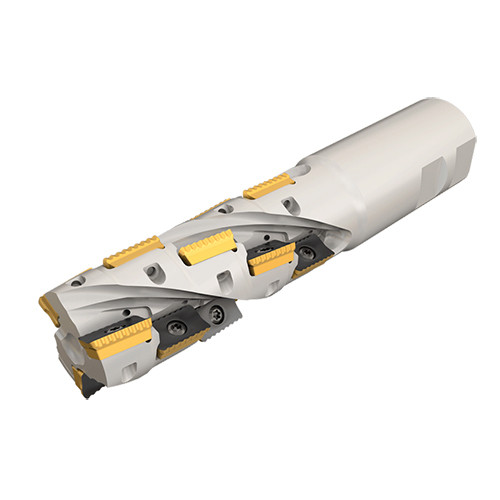

P290 ACK2.0-3-6.3-W200-18
Extended flute endmills carrying .472 and .708″ long edged inserts.
| Application | | Rampdown | Shouldering | | Cutting Depth | 7.28″ |
| Cutting Item Count (CICT) | 27 | Master Insert Identification (MIID) | P290 ACKT 1806PDR-FW |
| Depth of Cut Maximum (APMX) | 6.3″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 2″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Body Material | Steel |
| Overall Length (OAL) | 10.63″ | Tool Type | 90° Extended flute endmills |
| Cutting Length | 6.3″ | Connection Code Machine Side (CCMS) | Weldon |
| Number of Teeth | 16 |
Product Features
| Family Description | Extended flute endmills carrying .472 and .708″ long edged inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
7.110
