EFF-S6-16 045/42C16R2.0M IC902

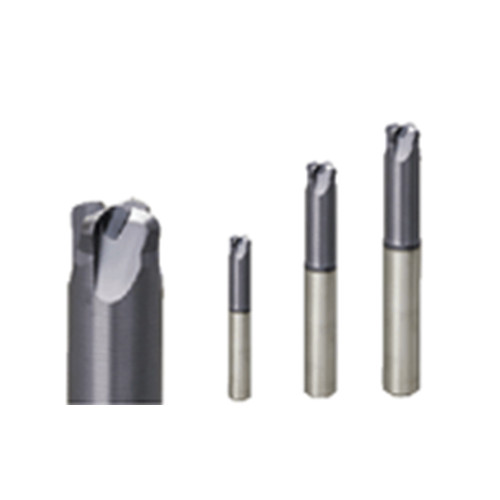

High productivity solid carbide endmills. For cast iron, alloy and hardened steel up to 65 HRC stainless steel, titanium and nickel based alloys.

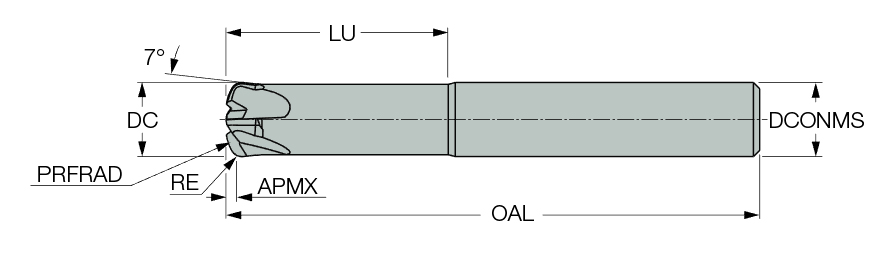

| Cutting Diameter (DC) | 16 mm | Ramping Angle Maximum (RMPX) | 3 Degrees |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Grade | IC902 |
| Depth of Cut Maximum (APMX) | 1.1 mm | Neck Diameter (DN) | 15.5 mm |
| Overall Length (OAL) | 92 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Fast Feed Solid Endmill |
| Coating | TiAlN | Maximum Feed per Tooth (fz(max)) | 0.55 mm/tooth |
| Flute Count (NOF) | 6 | Minimum Feed per Tooth (fz(min)) | 0.2 mm/tooth |
| Shank Type | Round | Coolant Supply Property (CSP) | External |
| End Shape | Corner Radius | Body Material | Carbide |
| Usable Length (LU) | 42 mm | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Fast Feed Milling | Helical Interpolation | Profiling | Rampdown | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
| Corner Radius (RE) | 2 mm |
Product Features
| Family Description | High productivity solid carbide endmills. For cast iron, alloy and hardened steel up to 65 HRC stainless steel, titanium and nickel based alloys. | Country of Origin | Israel |
Shipping Info
Package Weight
0.589
