HM390 SM D050-49-5-22-10

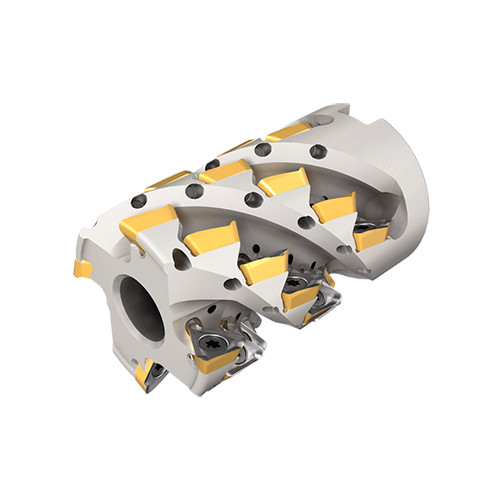

Extended flute shell mills carrying HM390 TPKT 1003 triangular inserts with 3 helical cutting edges

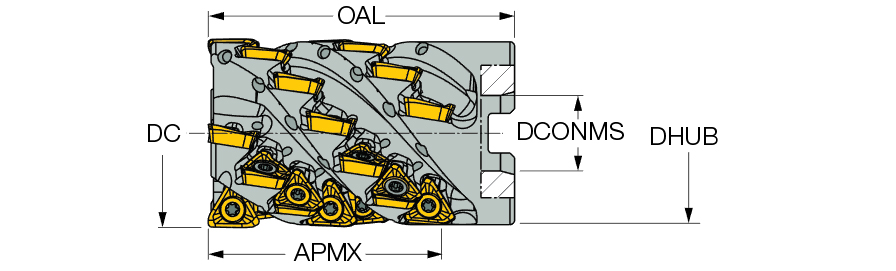

| Application | | Shouldering | | Number of Teeth | 16 |
| Cutting Item Count (CICT) | 35 | Master Insert Identification (MIID) | HM390 TPKT 1003 |
| Depth of Cut Maximum (APMX) | 49 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 50 mm | Arbor Style | A |
| Connection Diameter Machine Side (DCONMS) | 48.8 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 5 | Measurement Type | Metric |
| Overall Length (OAL) | 66 mm | Body Material | Steel |
| Cutting Length | 1.72″ | Tool Type | 90° Extended flute shell mill |
Product Features
| Family Description | Extended flute shell mills carrying HM390 TPKT 1003 triangular inserts with 3 helical cutting edges | Country of Origin | Israel |
Shipping Info
Package Weight
1.620
