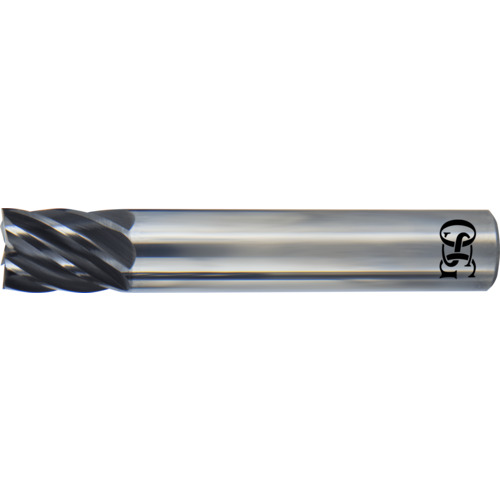

VGM7-02500CR0.03-S - 1/4″ Dia. × 1/4″ Shank × 3/8″ DOC × 2″ OAL, Carbide, EXO, 7 Flute, 0.03″ Corner Radius, End Mill
| Cutting Diameter (DC) | 1/4″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 3/8″ | Tool Type | End Mill |
| Overall Length (OAL) | 2″ | Decimal Equivalent | 0.25″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN | Series/List # | VGM7 |
| Flute Count (NOF) | 7 | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
| Shank Type | Round |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.054
