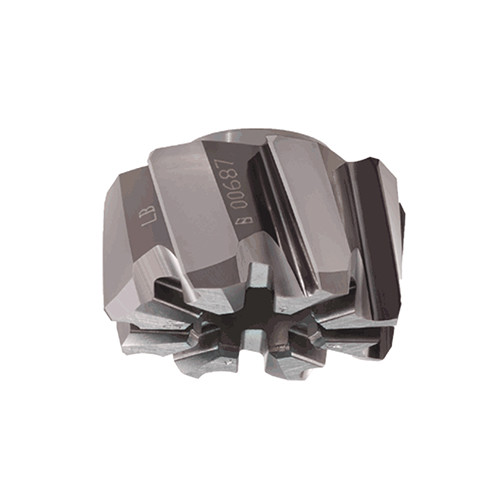

RM-BN6-16.000-H7LB IC08
Interchangeable left-hand flute solid carbide reaming heads (shell reamers) with a quick change bayonet mechanism for H7 hole tolerance high speed reaming through holes.

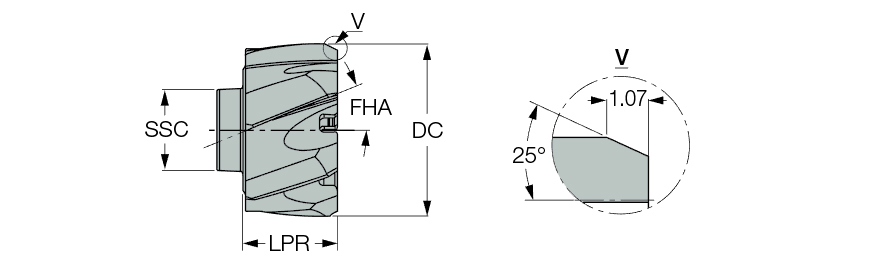

| Cutting Diameter (DC) | 16 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Length (L) | 9.5 mm | Tool Type | Shell Reamers / BAYO Heads |
| Insert Seat Size Code (SSC) | BN6 | Flute Type | Straight |
| Protruding Length (LPR) | 9.5 mm | Fits Arbor | #9 |
| Flute Count (NOF) | 6 | Arbore-Hole Diameter | 1-1/4″ |
| Flute Helix Angle (FHA) | 20 Degrees | Helix Angle | 20 Degrees |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Application | | Stacked Plates | Through & Axial Groove | Through & Perpendicular Holes | Through & Radial Groove | Through Hole | | Grade | IC08 |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Uncoated |
Product Features
| Family Description | Interchangeable left-hand flute solid carbide reaming heads (shell reamers) with a quick change bayonet mechanism for H7 hole tolerance high speed reaming through holes. | Country of Origin | Israel |

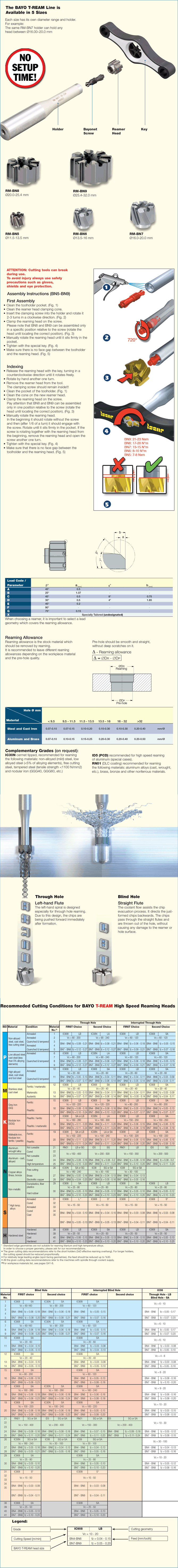

| Remarks | For user guide, click on More Info |
Shipping Info
Package Weight
0.075
