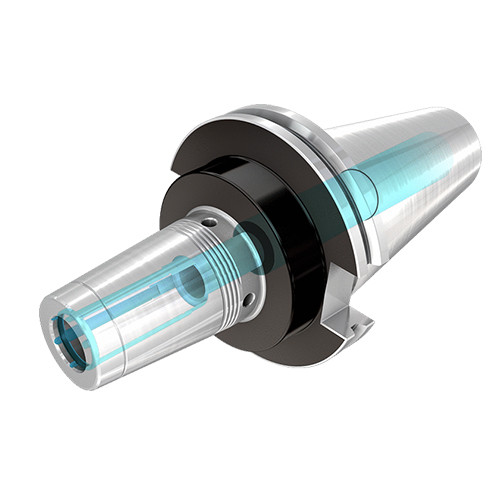

CAT40 SRKIN 1/4X3.500 CX
Thermal shrink chucks with Caterpillar Form AD tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide, HSS and steel tools with h6 tolerance

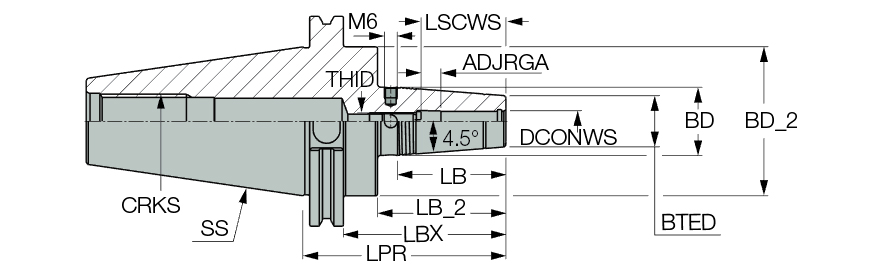

| Connection Diameter Workpiece Side (DCONWS) | 1/4″ | Protruding Length (LPR) | 3-1/2″ |
| Shank Size (SS) | 40 | Body Length Maximum (LBX) | 2-3/4″ |
| Body Length (LB) | 1.501″ | Clamping Length Workpiece Side (LSCWS) | 1.34″ |
| Body Length_2 (LB_2) | 2.12″ | Series/List # | SHRINK |
| Body Diameter (BD) | 1.063″ | Measurement Type | Inch |
| Body Diameter_2 (BD_2) | 1.752″ | Body Material | Steel |
| Body Taper End Diameter (BTED) | 0.827″ |
Product Features
| Family Description | Thermal shrink chucks with Caterpillar Form AD tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide, HSS and steel tools with h6 tolerance | Country of Origin | Israel |
| Remarks | Preset screw CX allows supply of coolant via JET groove - do not remove |
Shipping Info
LocalField10
0
Package Weight
2.7
