TPHN M-4X0.7-W HS

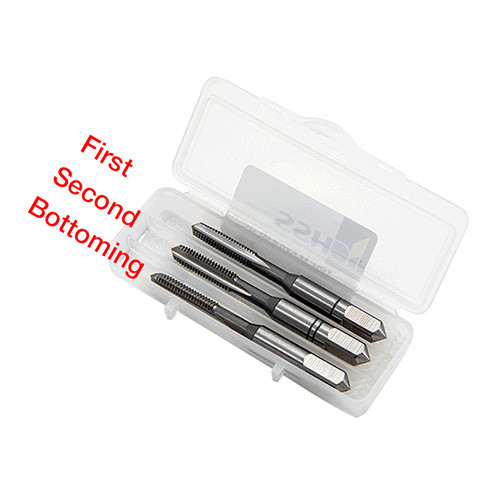

DIN 13 HSS hand tap set for ISO metric coarse threads. The set includes 3 types of taps for the first operation, secondoperation, and bottoming operation.
| Thread Diameter Size (TDZ) | M4 | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Deep Through Hole | Taps for Short Blind Hole | Taps for Short Through Hole | |
| Standard | DIN 352 | Measurement Type | Inch |

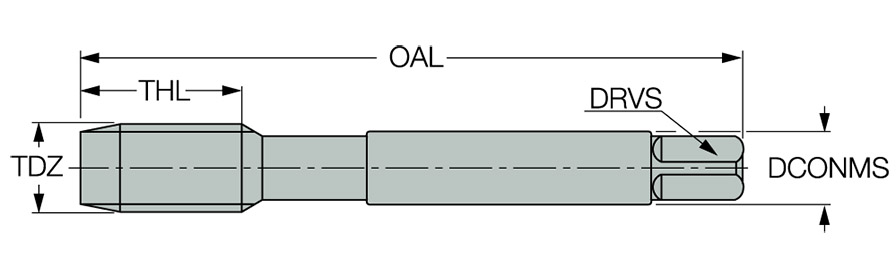

| Tool Type | Hand Taps | Thread Cutting Part Length (THL) | 0.551″ |
| Overall Length (OAL) | 1.811″ | Grade | HS |
| Connection Diameter Machine Side (DCONMS) | 0.177″ | Thread Pitch (TP) | 0.7 mm |
| Flute Count (NOF) | 3 | Thread Size | M4 × 0.7 |
| Cutting Edge Material | HSS | Body Material | HSS |
Product Features
| Family Description | DIN 13 HSS hand tap set for ISO metric coarse threads. The set includes 3 types of taps for the first operation, secondoperation, and bottoming operation. | Country of Origin | Hungary |
| Remarks | NOTE: Each set contains 2 or 3 taps |
Shipping Info
LocalField10
0
Package Weight
137
