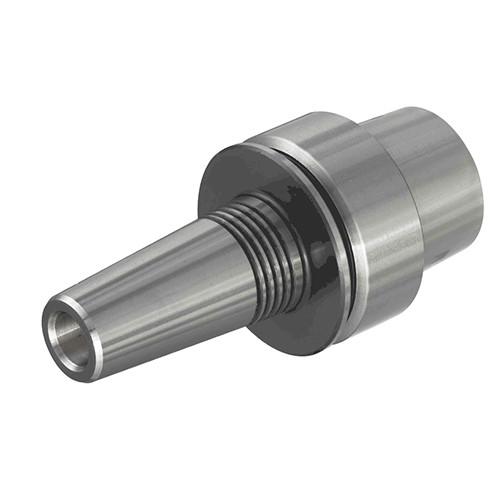

HSK E40 SRK5X45
SHRINKIN, thermal chuck collets with HSK DIN69893 Form E tapered shanks for solid carbide tools only.

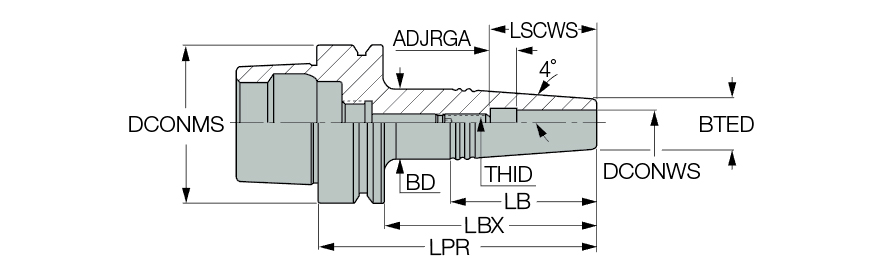

| Connection Diameter Machine Side (DCONMS) | 40 mm | Shank Standard | HSK A |
| Connection Diameter Workpiece Side (DCONWS) | 5 mm | Series/List # | SHRINK |
| Shank Size (SS) | 40 | Measurement Type | Metric |
| Body Length (LB) | 35 mm | Tool Type | HSK |
| Protruding Length (LPR) | 65 mm | Body Material | Steel |
| Overall Length (OAL) | 85 mm | Connection Code Machine Side (CCMS) | HSK |
Product Features
| Family Description | SHRINKIN, thermal chuck collets with HSK DIN69893 Form E tapered shanks for solid carbide tools only. | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). To be used for carbide tools only. For shank dimensions, Click on More Info. |
Shipping Info
Package Weight
0.626
