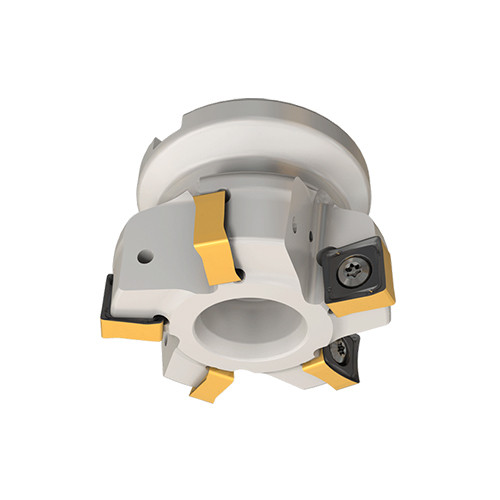

S890 FSN D2.0-04-0.75-R13
HELIDO, Face mills carrying inserts with 8 cutting edges. A very efficient solution for high metal removal of cast iron and steel components. The 88° lead angle minimizes burrs and edge chipping for cast iron applications.

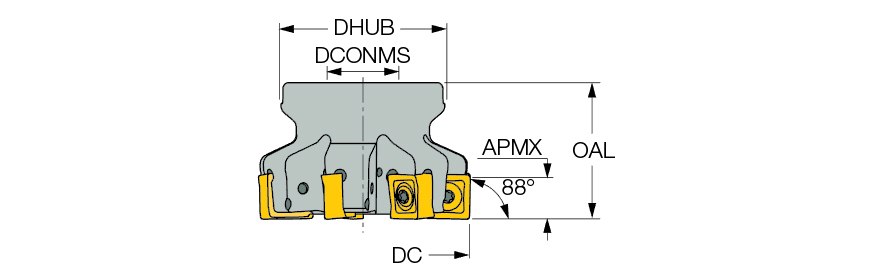

| Cutting Diameter (DC/DCX) | 1.862″ | Master Insert Identification (MIID) | S890 SNMU 1305PNR |
| Cutting Diameter (DC) | 2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 1.862″ | Usable Length (LU) | 1.793″ |
| Cutting Item Count (CICT) | 4 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.047″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | | Facing | Shouldering | |
| Overall Length (OAL) | 1.797″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 1.771″ | Tool Cutting Edge Angle (KAPR) | 89 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Product Features
| Family Description | HELIDO, Face mills carrying inserts with 8 cutting edges. A very efficient solution for high metal removal of cast iron and steel components. The 88° lead angle minimizes burrs and edge chipping for cast iron applications. | Country of Origin | Israel |
| Remarks | Use only Torx Plus keys |
Shipping Info
Package Weight
1.082
