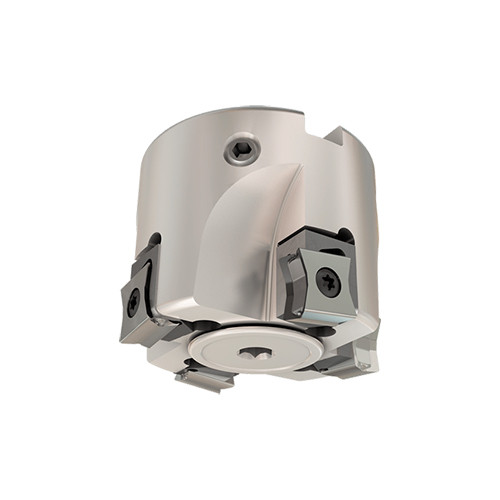

F90LN D125-08-40AFR CA11
Adjustable 90° face mills (used mainly for PCD/CBN inserts)

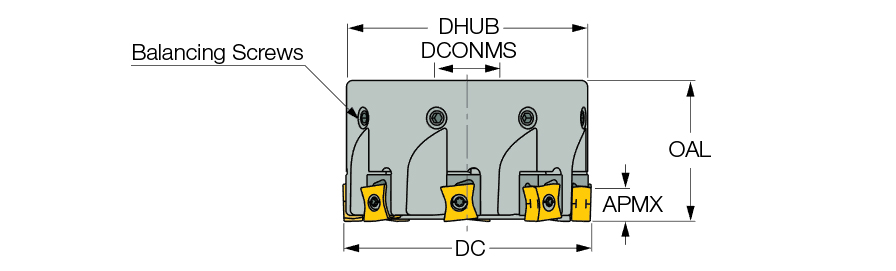

| Cutting Diameter (DC/DCX) | 125 mm | Master Insert Identification (MIID) | LNMT 1106PN-N MM |
| Cutting Diameter (DC) | 125 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 8 | Body Material | Aluminium |
| Depth of Cut Maximum (APMX) | 5 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Application | | Facing | Shouldering | Slotting | |
| Overall Length (OAL) | 63 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 122 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | B | Tool Type | 90° Facemills |
Product Features
| Family Description | Adjustable 90° face mills (used mainly for PCD/CBN inserts) | Country of Origin | Israel |

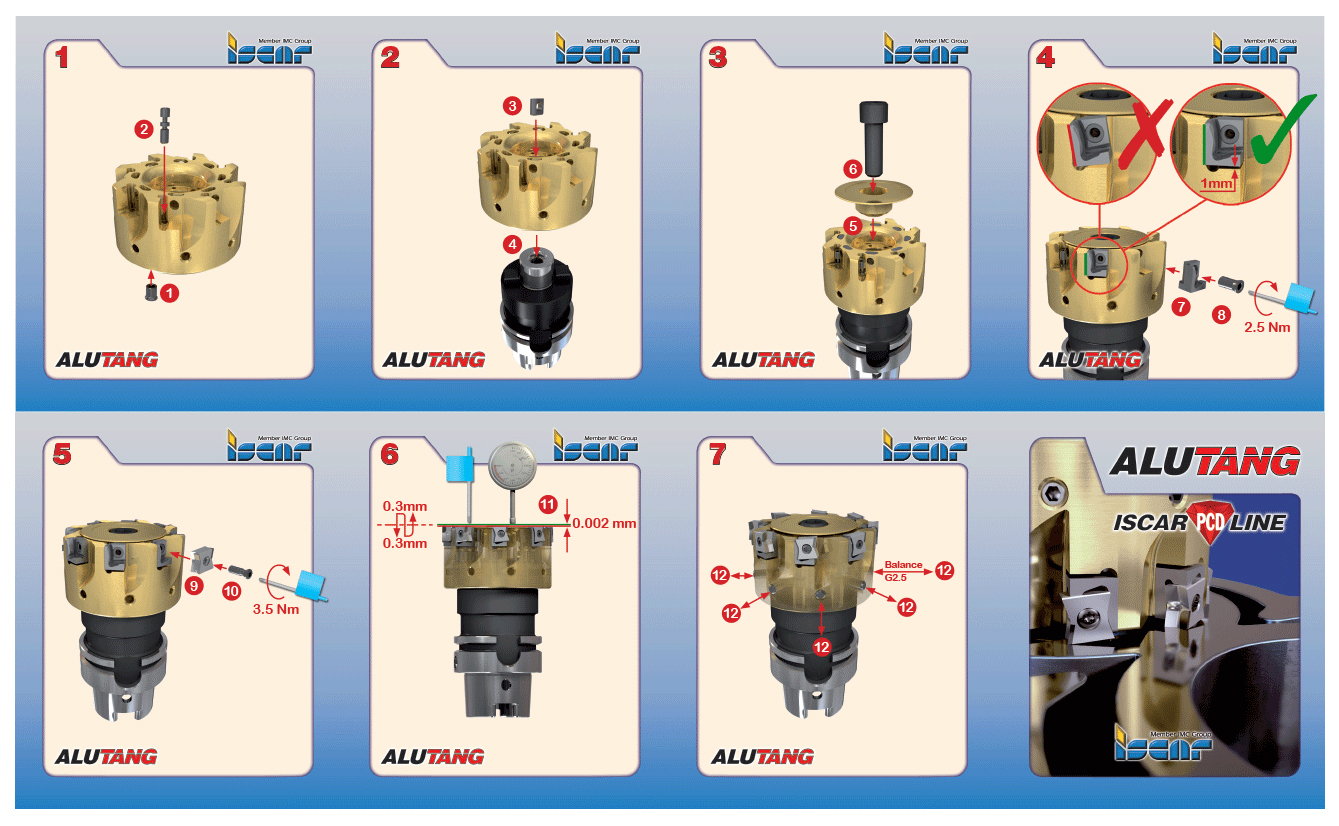

| Remarks | The tool bodies are made from aluminum (AFR) and the 50 mm tools are made from steel (SFR) For assembly and adjustment instructions, click on More Info |
Shipping Info
Package Weight
4.740
