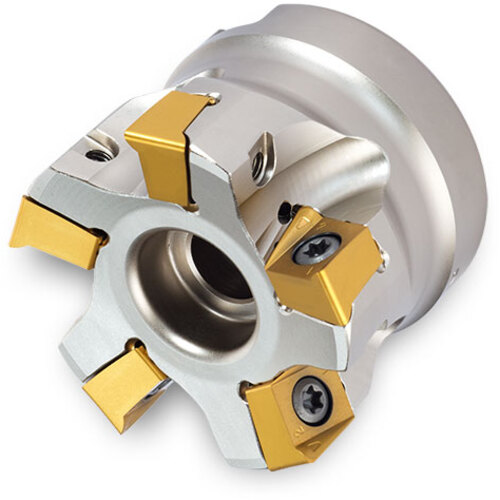

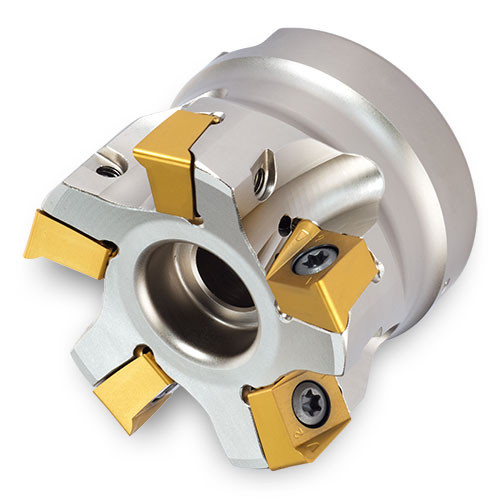

TJ5G040R00
Insert corners: 0.8 mm, 1.6 mm 2.4 mm R & Hi-Feed 32-63 Ra finish w/ integrated wiper (WEP) 63-125 Ra finish w/o wiper
| Cutting Diameter (DC/DCX) | 1.575″ | Arbor Style | A |
| Cutting Diameter (DC) | 1.575″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 4 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.413″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.63″ | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 1.575″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
| Family Description | Insert corners: 0.8 mm, 1.6 mm 2.4 mm R & Hi-Feed 32-63 Ra finish w/ integrated wiper (WEP) 63-125 Ra finish w/o wiper | Country of Origin | Germany |
Shipping Info
LocalField10
0
Package Weight
0.564
