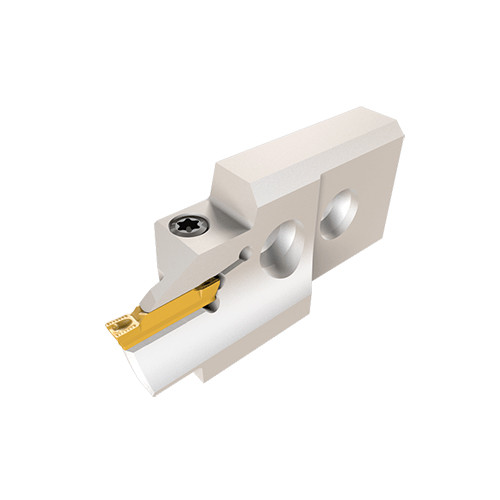

HGAER 21-3T9

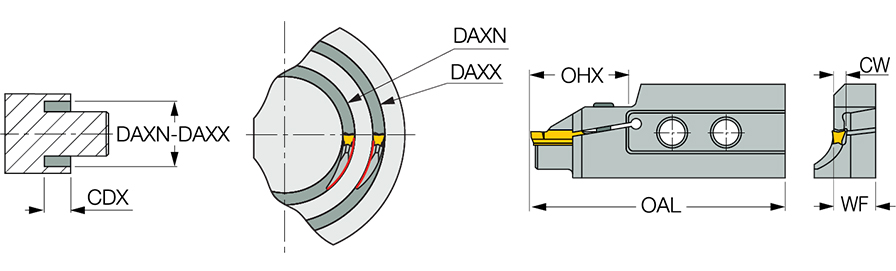

| Cutting Depth Maximum (CDX) | 0.354″ | Overall Length (OAL) | 2.165″ |
| Cutting Width (CW) | 0.118″ | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Cutting Width Maximum (CWX) | 0.126″ | Tool Type | Face Turning & grooving Tools |
| Cutting Width Minimum (CWN) | 0.11″ | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Functional Width (WF) | 0.402″ |
| Axial Groove Outside Diameter Maximum (DAXX) | 0.98″ | Measurement Type | Inch |
| Axial Groove Outside Diameter Minimum (DAXN) | 0.83″ |
Product Features
| Family Description | Adapters for external facing, along shafts. Dmin. .472″. | Country of Origin | Israel |

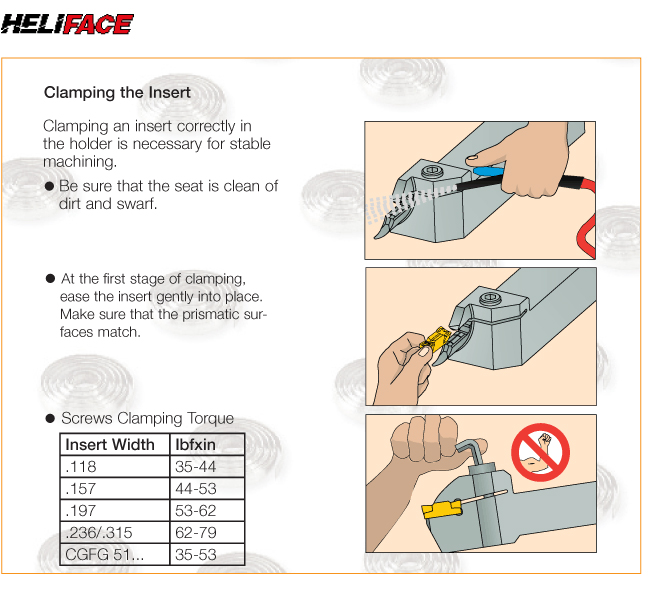

| Remarks | GRIP 3... inserts can be used with right-hand adapters only, HGPL 3 with left-hand adapters For information regarding compatibility with the HATA system, please refer to the additional information provided for each of the intermediate serrated cartridges: IH-HFAIR For inserts clamping instructions, click on More Info |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.18
Related Documentation
GRIP inserts for right-hand adapters. HGPL inserts for left-hand adapters.
