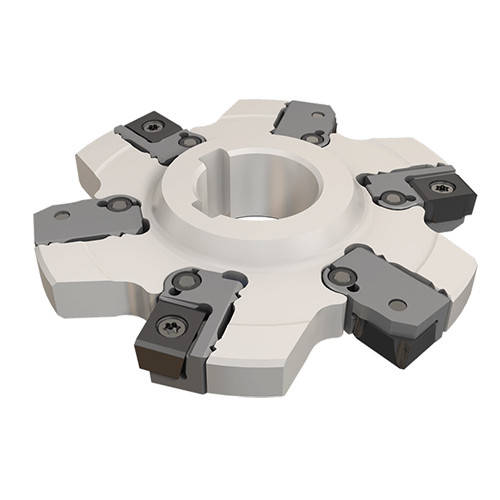

SDN D200-0608-50-CALN12
Full slot adjustable slotting cutters with cartridges carrying tangentially mounted LNET 12... inserts. Narrow slitting, saves workpiece material and provides excellent surface quality, (e.g. for bearing caps).

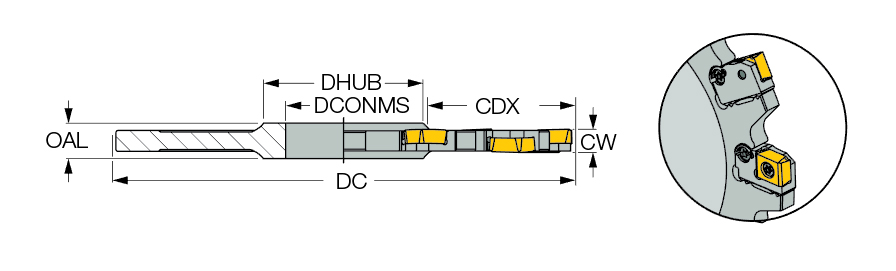

| Cutting Diameter (DC) | 200 mm | Overall Length (OAL) | 12 mm |
| Cutting Item Count (CICT) | 16 | Master Insert Identification (MIID) | LNET 124508-TN |
| Peripheral Effective Cutting Edge Count (ZEFP) | 8 | Application | | Bottom Shouldering | Shouldering | Side Slotting | Slotting | |
| Cutting Depth Maximum (CDX) | 63 mm | Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 70 mm | Measurement Type | Metric |
| Cutting Width Maximum (CWX) | 8.2 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 6 mm | Connection Code Machine Side (CCMS) | Disk type |
| Flute Count (NOF) | 16 |
Product Features
| Family Description | Full slot adjustable slotting cutters with cartridges carrying tangentially mounted LNET 12... inserts. Narrow slitting, saves workpiece material and provides excellent surface quality, (e.g. for bearing caps). | Country of Origin | Israel |
| Remarks | For width assembly options, click on More Info. |
Shipping Info
Package Weight
3.417
