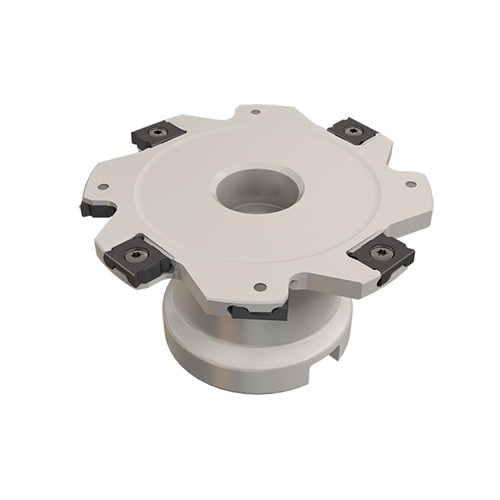

FDN D080-06-22-LN08

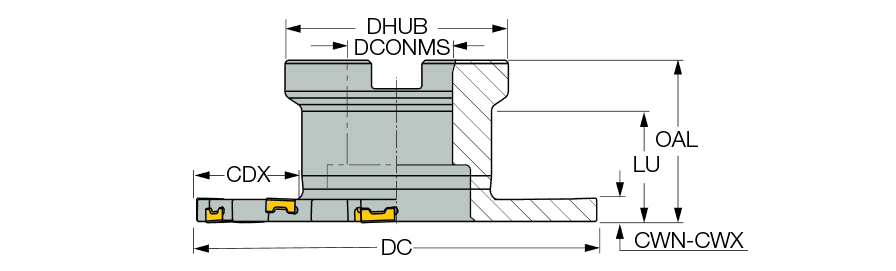

| Cutting Diameter (DC) | 80 mm | Flute Count (NOF) | 10 |
| Cutting Item Count (CICT) | 10 | Overall Length (OAL) | 40 mm |

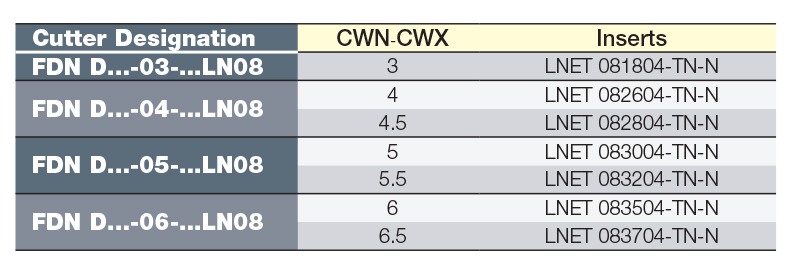

| Peripheral Effective Cutting Edge Count (ZEFP) | 5 | Master Insert Identification (MIID) | LNET 083504-TN-N |
| Cutting Depth Maximum (CDX) | 22.5 mm | Application | | Side Slotting | Slitting | Slotting | |
| Hub Diameter (DHUB) | 45 mm | Arbor Style | A |
| Cutting Width Maximum (CWX) | 6.5 mm | Tool Type | Double-sided slotting cutters |
| Cutting Width Minimum (CWN) | 6 mm | Measurement Type | Metric |
| Usable Length (LU) | 28 mm | Body Material | Steel |
Product Features
| Family Description | Full slot cutters carrying LNET 08 tangentially mounted inserts. A very effective solution for parting quality parts such as bearing caps at high cutting speeds. | Country of Origin | Israel |
Shipping Info
Package Weight
1.069
