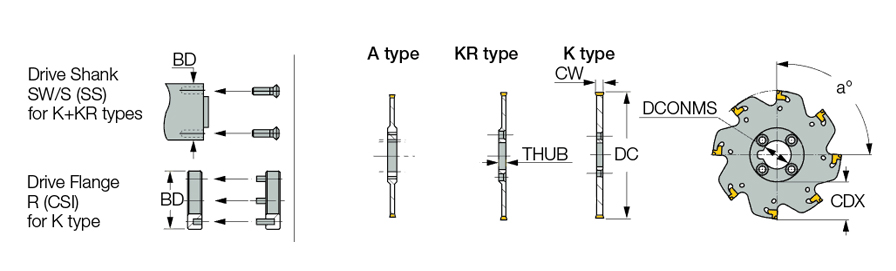

| Cutting Diameter (DC) | 3.15″ | Master Insert Identification (MIID) | TAG N3C |
| Cutting Item Count (CICT) | 7 | Application | | Side Slotting | Slitting | |
| Peripheral Effective Cutting Edge Count (ZEFP) | 7 | Rotational Speed Maximum (RPMX) | 3900 Rev/min |
| Cutting Depth Maximum (CDX) | 0.63″ | Tool Type | Slitting cutters |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Hub Thickness (THUB) | 0.1″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.12″ | Connection Code Machine Side (CCMS) | Disk type |
| Cutting Width Minimum (CWN) | 0.12″ |
Product Features

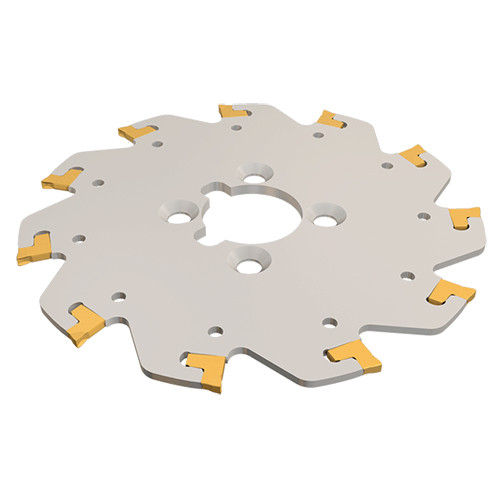

| Family Description | TANGSLIT slitting cutters carrying TANG-GRIP inserts. | Country of Origin | Israel |
| Remarks | DC varies slightly due to different chip formers having different lengths For precision operations it is recommended to verify diameter offset before machining For drive flange set dimensions, refer to Related Holder |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.251
