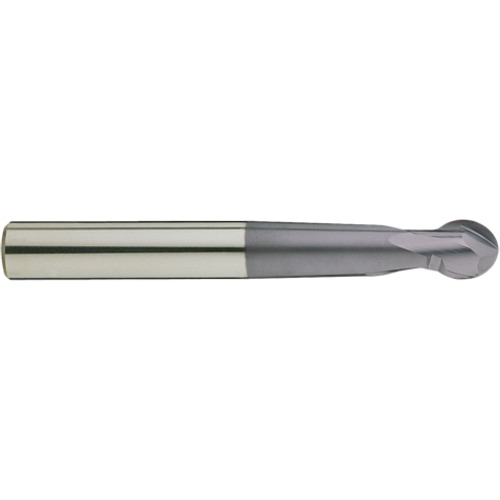

Ball Nose End Mill; 1/2″ Dia. × 17/32″ LOC × 1/2″ Shank Dia. × 4-1/4″ OAL ; 2 FL ; Carbide ; ALTiN ; Series EM084
| Cutting Diameter (DC) | 1/2″ | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Radius (RE) | 1/4″ |
| Depth of Cut Maximum (APMX) | 17/32″ | Neck Diameter (DN) | 0.4″ |
| Overall Length (OAL) | 4-1/4″ | Length Group | Long |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Coating | ALTiN | Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | EM084 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 2-1/4″ | Center Cutting | Yes |
Product Features
| Country of Origin | KR |
Shipping Info
Package Length
4.625
Package Width
1/0/1900 18:00
Package Height
0.75
Package Weight
0.3935
