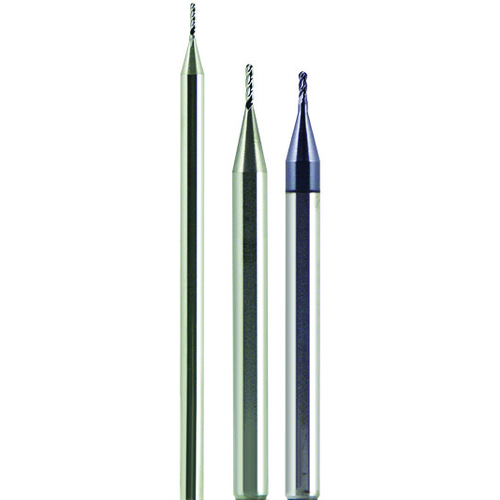

0.018″ Dia. × 1/8″ Shank × 0.054″ DOC × 1-1/2″ OAL, Carbide AlTiN, 4 Flute, Ballnose End Mill Series/List #5919T
| Cutting Diameter (DC) | 0.018″ | Tool Type | Miniature End Mill |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Length Group | Regular |
| Depth of Cut Maximum (APMX) | 0.054″ | End Shape | Ball Nose |
| Overall Length (OAL) | 1-1/2″ | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Style | Finishing |
| Coating | AlTiN | Decimal Equivalent | 0.018″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | 5919T |
| Shank Type | Round | Center Cutting | Yes |
| Applicable Material | | Carbide | | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
.37500
Package Height
.37500
Package Weight
0.02
