ETS D050-03-LN08-M10

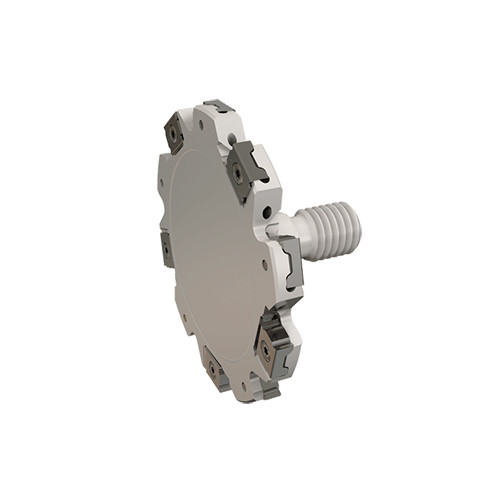

MINI-TANGSLOT, Grooving and slitting cutters with FLEXFIT threaded adaptation, carrying tangentially clamped inserts with 4 cutting edges.

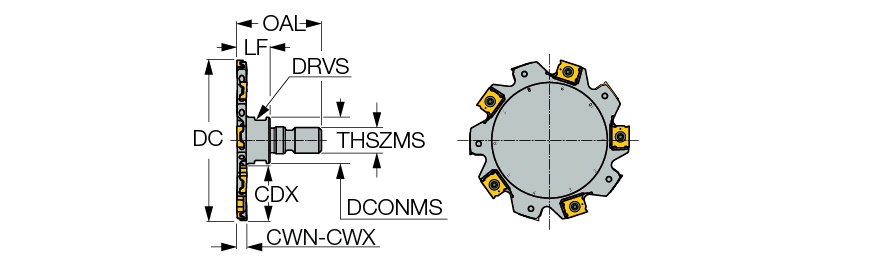

| Cutting Diameter (DC) | 1.968″ | Cutting Length Max. | 0.118″ |
| Flute Count (NOF) | 8 | Measurement Type | Inch |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 | Tool Type | Double-sided slotting cutters |
| Connection Diameter Machine Side (DCONMS) | 0.709″ | Body Material | Steel |
| Overall Length (OAL) | 1.299″ | Cutting Item Count (CICT) | 8 |
| Coolant Supply Property (CSP) | Through Hole | Master Insert Identification (MIID) | LNET 081804-TN-N |
| Application | | Side Slotting | Slitting | T Slotting | | Connection Code Machine Side (CCMS) | FLEXFIT |
| Cutting Length Min. | 0.118″ |
Product Features
| Family Description | MINI-TANGSLOT, Grooving and slitting cutters with FLEXFIT threaded adaptation, carrying tangentially clamped inserts with 4 cutting edges. | Country of Origin | Israel |

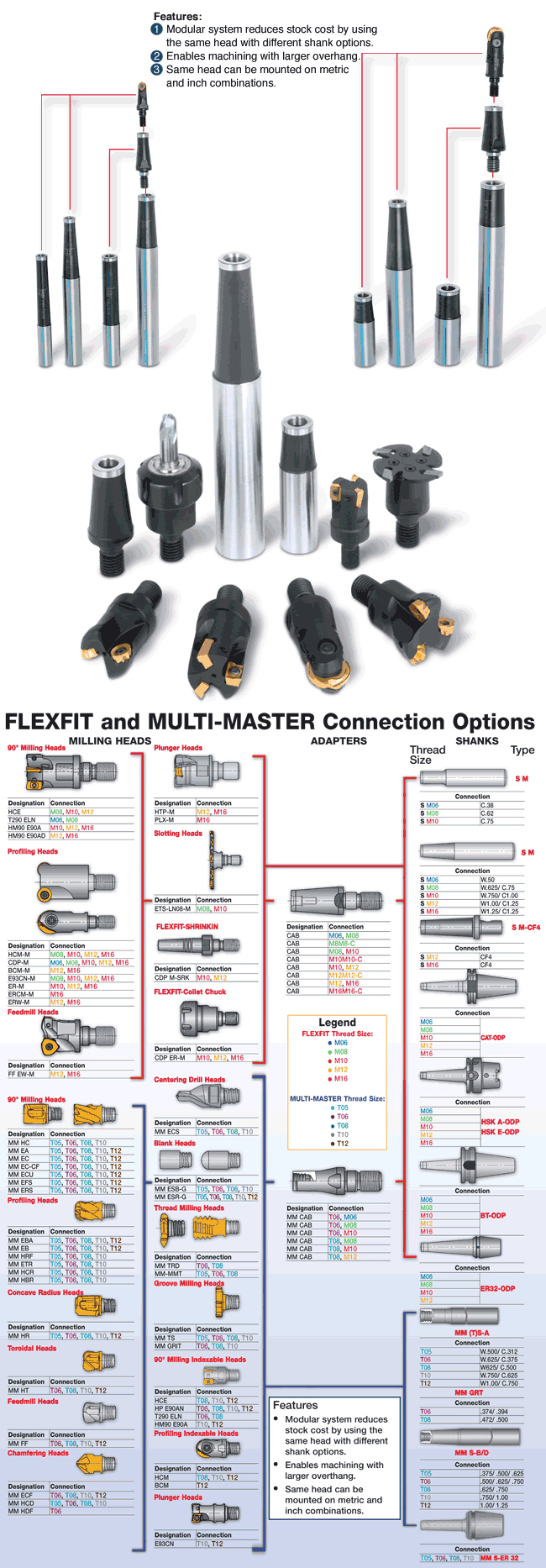

| Remarks | For adaptation, click on More Info When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter |
Shipping Info
Package Weight
0.265
