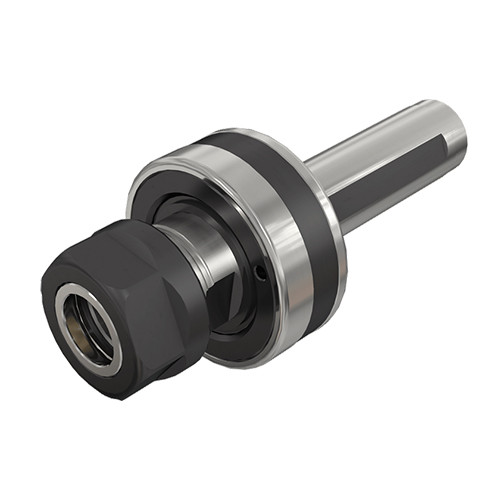

GFI ST25 ER32

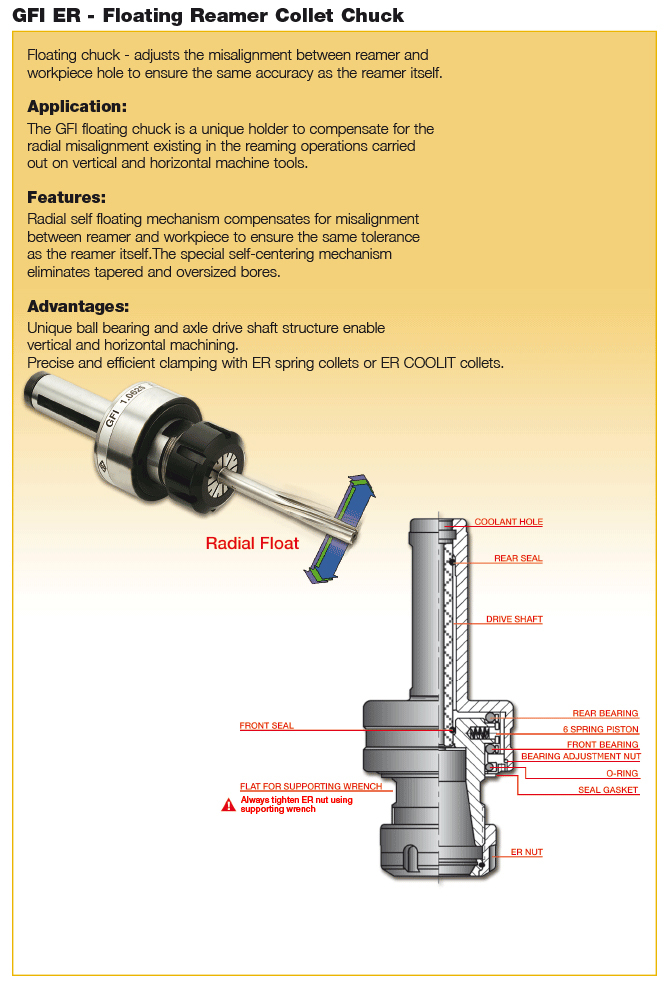

Floating reamer DIN 6499 collet chucks and cylindrical shanks with a clamping flat.

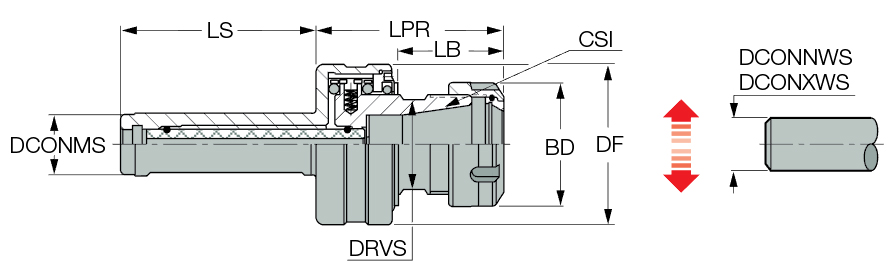

| Connection Size (CSI) | ER32 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Body Diameter (BD) | 50 mm | Body Length (LB) | 45.9 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Measurement Type | Metric |
| Flange Diameter (DF) | 65 mm | Shank Length (LS) | 80 mm |
| Protruding Length (LPR) | 76.9 mm | Overall Length (OAL) | 156.9 mm |
| Tool Type | Cylindrical Shanks | Weight of Item (WT) | 1.2 Kg |
| Radial Float (RFI) | 0.8 mm | Body Material | Steel |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
Product Features
| Family Description | Floating reamer DIN 6499 collet chucks and cylindrical shanks with a clamping flat. | Country of Origin | Israel |
| Remarks | Maximum 2000 RPM! For Adaptation Click on More Info |
Shipping Info
Package Weight
2.873
