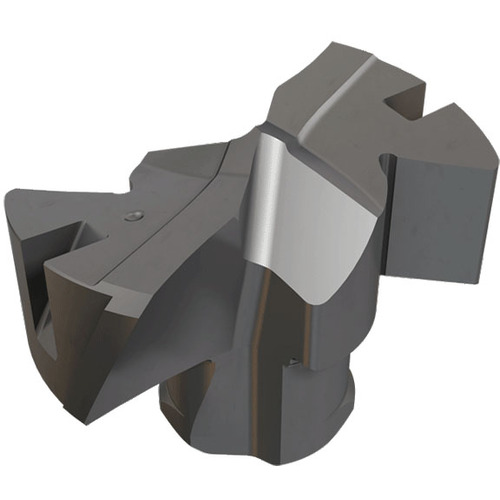

FCP 0382 IC908
Exchangeable flat bottom drilling heads for DCN drills, for machining ISO P and ISO K materials. The drill head is designed with a honed cutting edge, available in increments of .004″.
| Cutting Diameter (DC) | 0.382″ | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Thickness (S) | 0.165″ |
| Application | | Chamfering | Drilling | | Point Length (PL) | 0.0437″ |
| Grade | IC908 | Point Angle (SIG) | 140 Degrees |
| Tool Type | Drilling Heads | Coating | TiAlN |
| Protruding Length (LPR) | 0.181″ | Pilot Drill Diameter (PDD) | 0.111″ |
| Insert Seat Size Code (SSC) | 9.0 | Corner Chamfer Width (CHW) | 0.016″ |
| Functional Length (LF) | 0.138″ | Chamfer Angle | 60 Degrees |
| Cutting Edge Material | Carbide | Body Material | Carbide |
Product Features
| Family Description | Exchangeable flat bottom drilling heads for DCN drills, for machining ISO P and ISO K materials. The drill head is designed with a honed cutting edge, available in increments of .004″. | Country of Origin | Israel |
| Remarks | For nearly flat bottom hole applications |
Shipping Info
Package Weight
0.013
