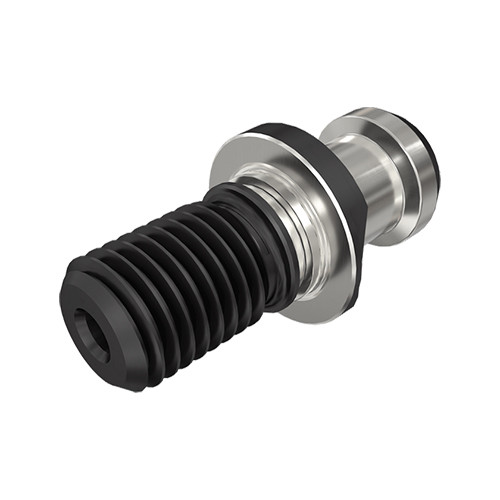

PS BT40 15 M16 JISB
BT pull stud with JIS 6339 retention knob.
| Shank Size (SS) | 40 | Measurement Type | Inch |
| Body Diameter (BD) | 0.669″ | Tool Type | PS BT JIS |
| Connection Retention Knob Thread Size (CRKS) | M16 | Body Half Taper Angle (BHTA) | 75 Degrees |
| Body Length (LB) | 0.906″ | Body Material | Steel |
| Overall Length (OAL) | 2.126″ | Flange to Knob Length | 0.91″ |
| Application | | Collets & Accessories | | Flange to Angle Length | 0.71″ |
Product Features
| Family Description | BT pull stud with JIS 6339 retention knob. | Country of Origin | Italy |

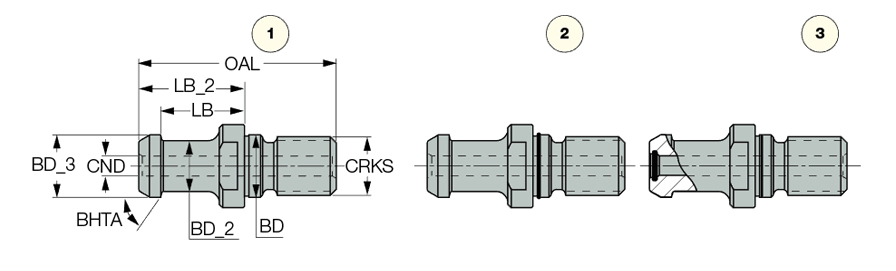

| Remarks | Fig 1: With coolant holes only Fig 2: With coolant holes and external O-ring Fig 3: With coolant holes, external and internal O-rings |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.182
