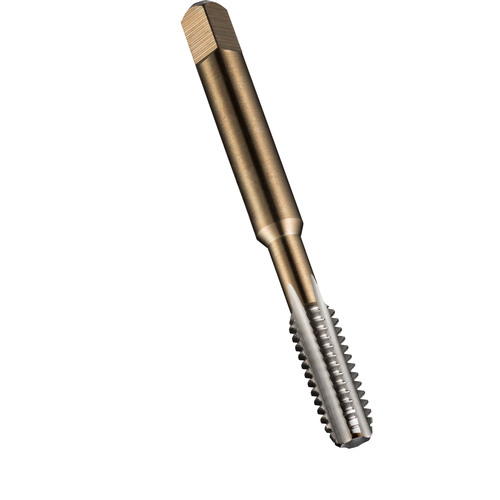

Dormer HSS Bright UNF Hand Tap Straight Flute ANSI Series E071 E-code # E0713/8NO2
E-code # E0713/8NO2
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 3/8″ | Tool Type | Hand Tap |
| Threads per Inch (TPI) | 24 | Coating | Uncoated |
| Thread Standard | UNF | Tapping Prehole Diameter (Pre-hole) | Q |
| Overall Length (OAL) | 2-15/16″ | Flute Length | 0.81″ |
| Thread Cutting Part Length (THL) | 0.81″ | Flute Type | Straight |
| Usable Length (LU) | 1.378″ | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.381″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | | Length Group | 1.5D |
| Cutting Edge Material | HSS | Measurement Type | Inch |
| Thread Tolerance Class (TCTR) | 2B | 3B | H4 | Series/List # | E071 |
| Standard | ANSI | Thread Size | 3/8″ - 24 |
Product Features
| Family Description | E-code # E0713/8NO2 | Country of Origin | JP |
Shipping Info
Package Weight
1.3629
