| Thread Diameter Size (TDZ) | M20 | Chamfer | 1 to 2 Threads |
| Thread Pitch (TP) | 2.5 mm | Coating | Uncoated |
| Thread Standard | Metric | Flute Type | Straight |
| Overall Length (OAL) | 4-15/32″ | End Shape | Chamfer |
| Thread Cutting Part Length (THL) | 2″ | Style | Bottoming |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Cutting Edge Material | HSS | Series/List # | 7500 |
| Thread Tolerance Class (TCTR) | D7 | Thread Size | M20 × 2.5 |

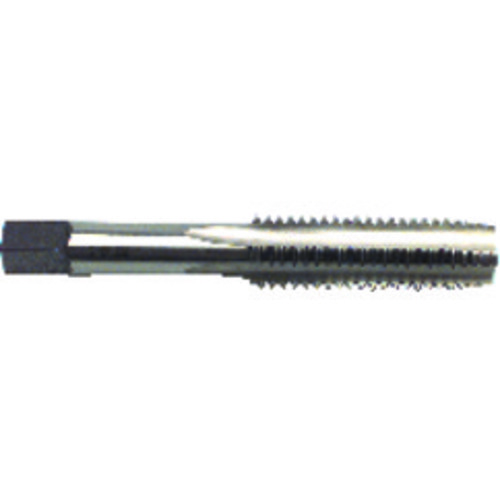

| Tool Type | General Purpose Tap |
Product Features
| Remarks | Straight Flute hand taps are used for hand tapping and machine tapping in through holes or blind holes in a wide variety of materials. |
Country of Origin | USA |
Shipping Info
LocalField10
0
Package Length
4.50000
Package Width
.90000
Package Height
.80000
Package Weight
0.35
