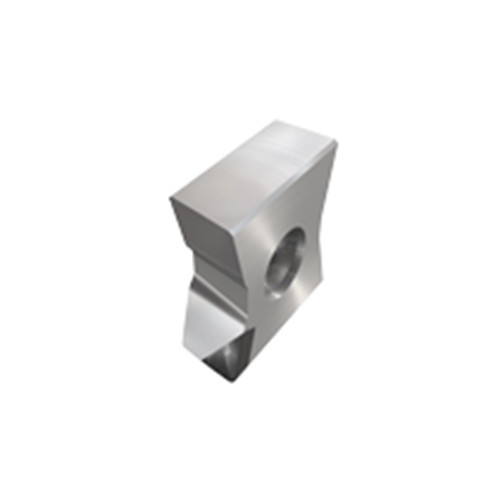

LNAW 1506PNTR-S IB85
Milling Insert; LNAW1506PNTRSIB85 IB85 × 0.236″ Width × 0.547″ Thickness ; PCBN ; Uncoated
| Applicable Material | | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shape | Rectangle |
| Application | | Facing | Shouldering | | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |

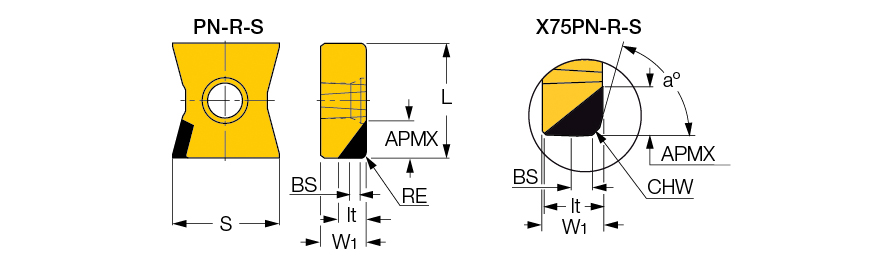

| Insert Length (INSL) | 0.591″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | PCBN |
| Depth of Cut Maximum (APMX) | 0.197″ | Tool Type | Mill Ultra hard Inserts |
| Insert Width (W1) | 0.236″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Thickness (S) | 0.547″ | Number of Cutting Edges | 1 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IB85 |
Product Features
| Family Description | TANGMILL inserts with a PCBN brazed tip. Use on F90LN milling cutters for machining hardened and cast steel with over 45 HRc, grey and nodular cast iron, powder compacted and sintered metals and heat resistant alloys. | Country of Origin | Italy |

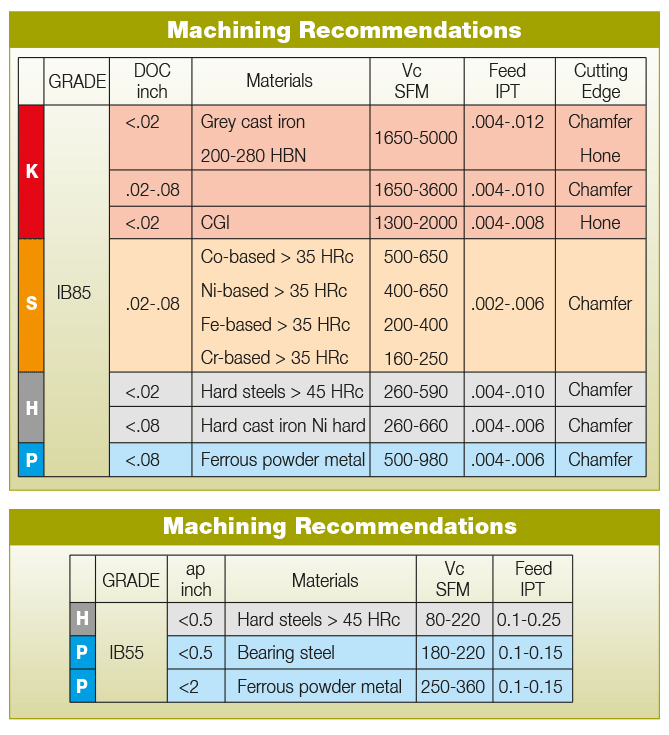

| Remarks | The LNAW PN-R.. is .0012 edge-honed for finishing applications, while the LNAW PNTR... has a chamfered edge for rough milling applications For D.O.C. and machining recommendations, click on More Info |
Shipping Info
Package Weight
0.046
