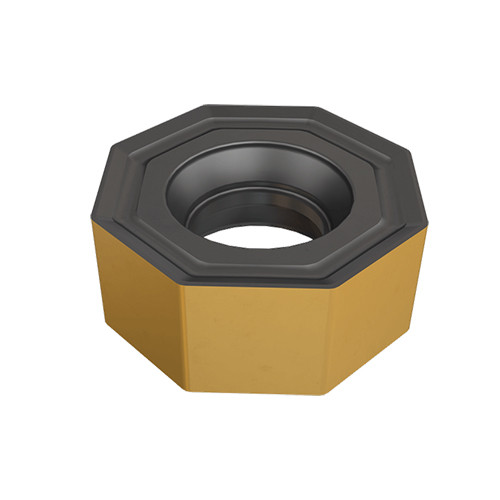

ONMU 050505-TN DT7150
Octagonal double-sided inserts with 16 cutting edges (HELIDO 845 line).

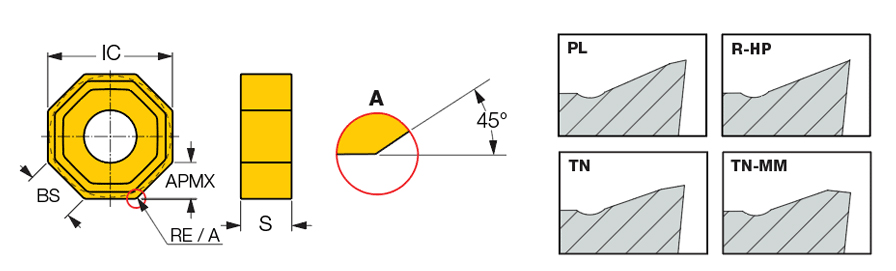

| Applicable Material | | Cast Iron | Hard Materials | | Shape | 135° Octagon |
| Application | | Facing | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |
| Corner Radius (RE) | 0.0197″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.138″ | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.2″ | Minimum Feed per Tooth (fz(min)) | 0.0079 ″/tooth |
| Insert Included Angle (EPSR) | 135 Degrees | Number of Cutting Edges | 16 |
| Coating | MTCVD Al2O3 & TiAlN PVD | Measurement Type | Inch |
| Grade | DT7150 | Body Material | Carbide |
Product Features
| Family Description | Octagonal double-sided inserts with 16 cutting edges (HELIDO 845 line). | Country of Origin | Israel |
| Remarks | ONHU - Precision ground ONMU - Utility |
Shipping Info
Package Weight
0.019
