WOLH 3-1-GF IC908
Drill Insert; 0.236″ Length × 0.15″ Thickness × 0.394″ IC × 0.0157″ Corner Radius ; Square ; Carbide ; TiAlN ; IC908

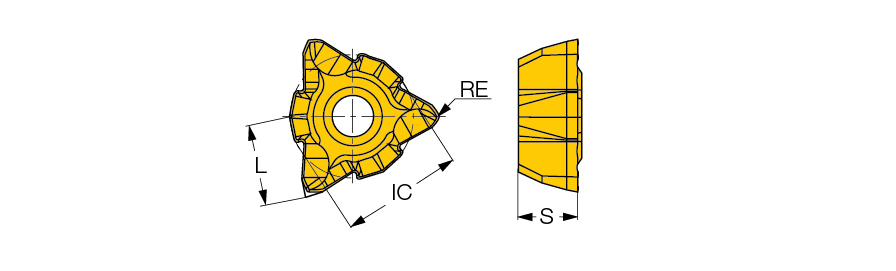

| Cutting Edge Length (L) | 0.236″ | Application | | Drilling | |
| Insert Thickness (S) | 0.15″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Inscribed Circle Diameter (IC) | 0.394″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0157″ | Tool Type | Indexable drilling inserts |
| Shape | Square | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 |
Product Features
| Family Description | Inserts for DZ drills with serrated cutting edges and a tight chipformer, for chip splitting at low-to-medium feeds. | Country of Origin | Israel |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.003
