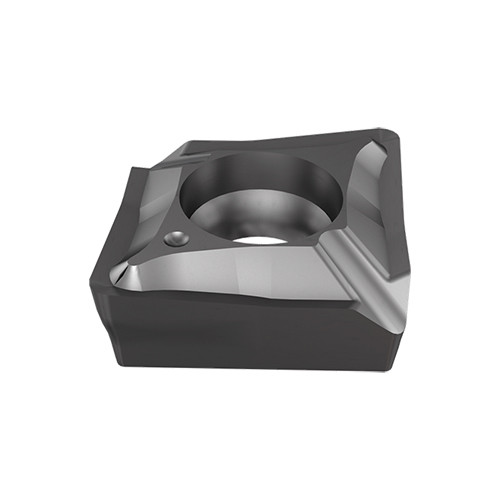

XCMT 060204-MF IC908
Inserts for DR-MF multifunction tools. Two cutting edges for hard materials and interrupted cut. Low cutting forces due to high cutting edges and positive angles.

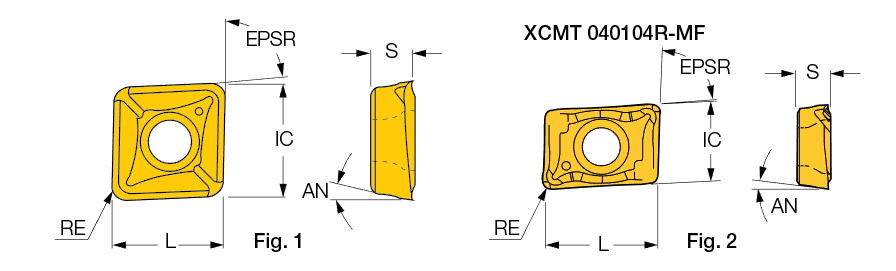

| Cutting Edge Length (L) | 0.252″ | Application | | Drilling Ext Face Int. Turning | |
| Insert Thickness (S) | 0.094″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Included Angle (EPSR) | 83.5 Degrees | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.252″ | Tool Type | Indexable drilling inserts |
| Corner Radius (RE) | 0.0157″ | Measurement Type | Inch |
| Shape | Special | Cutting Direction (HAND) | Neutral |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 |
Product Features
| Family Description | Inserts for DR-MF multifunction tools. Two cutting edges for hard materials and interrupted cut. Low cutting forces due to high cutting edges and positive angles. | Country of Origin | Korea |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.005
