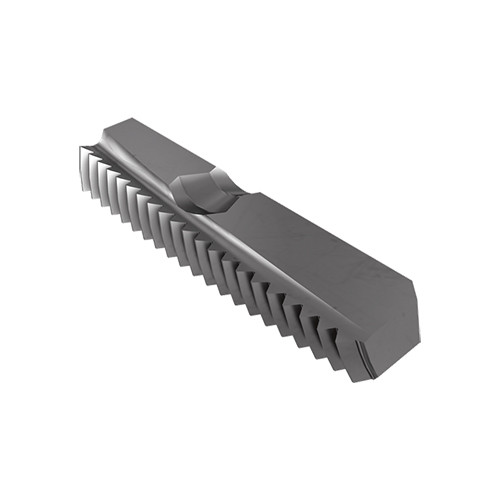

MTH 23 E 2.0 ISO IC908
Helical thread milling inserts for ISO metric external threading

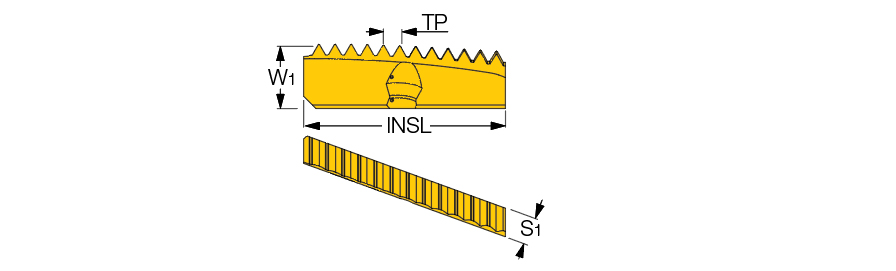

| Thread Standard | THFT | | Shape | 90° Rectangular |
| Thread Pitch (TP) | 2 mm | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 1.063″ | Coating | TiAlN |
| Insert Width (W1) | 0.315″ | Tool Type | Threading Regular Inserts |
| Insert Thickness Total (S1) | 0.138″ | Measurement Type | Inch |
| Cutting Position | External | Body Material | Carbide |
| Application | | External Thread Milling | | Thread Form Type (THFT) | M60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Type (TTP_DF2) | EXT |
| Grade | IC908 |
Product Features
| Family Description | Helical thread milling inserts for ISO metric external threading | Country of Origin | Israel |
| Remarks | For cutting speed recommendations, Click on More Info. |
