MTH 32 I 12 UN IC908
Helical thread milling inserts for American (UN, UNC, UNF, UNEF, UNS) internal full profile threads. Application: general industry.
| Thread Standard | THFT | | Grade | IC908 |
| Thread Pitch (TP) | 2.117 mm | Shape | 90° Rectangular |
| Threads per Inch (TPI) | 12 | Cutting Edge Material | Carbide |

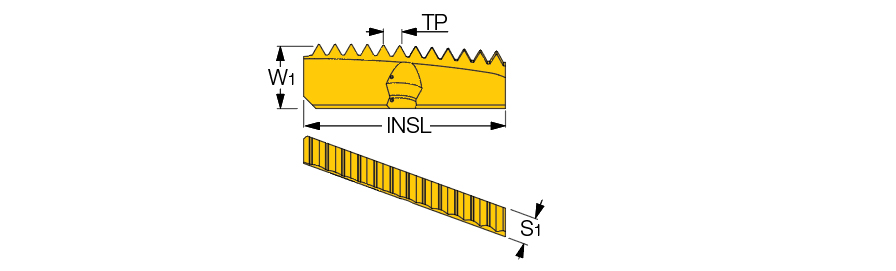

| Insert Length (INSL) | 1.26″ | Coating | TiAlN |
| Insert Width (W1) | 0.354″ | Tool Type | Threading Regular Inserts |
| Insert Thickness Total (S1) | 0.157″ | Measurement Type | Inch |
| Cutting Position | Internal | Body Material | Carbide |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | UN60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Type (TTP_DF2) | INT |
Product Features
| Family Description | Helical thread milling inserts for American (UN, UNC, UNF, UNEF, UNS) internal full profile threads. Application: general industry. | Country of Origin | Israel |

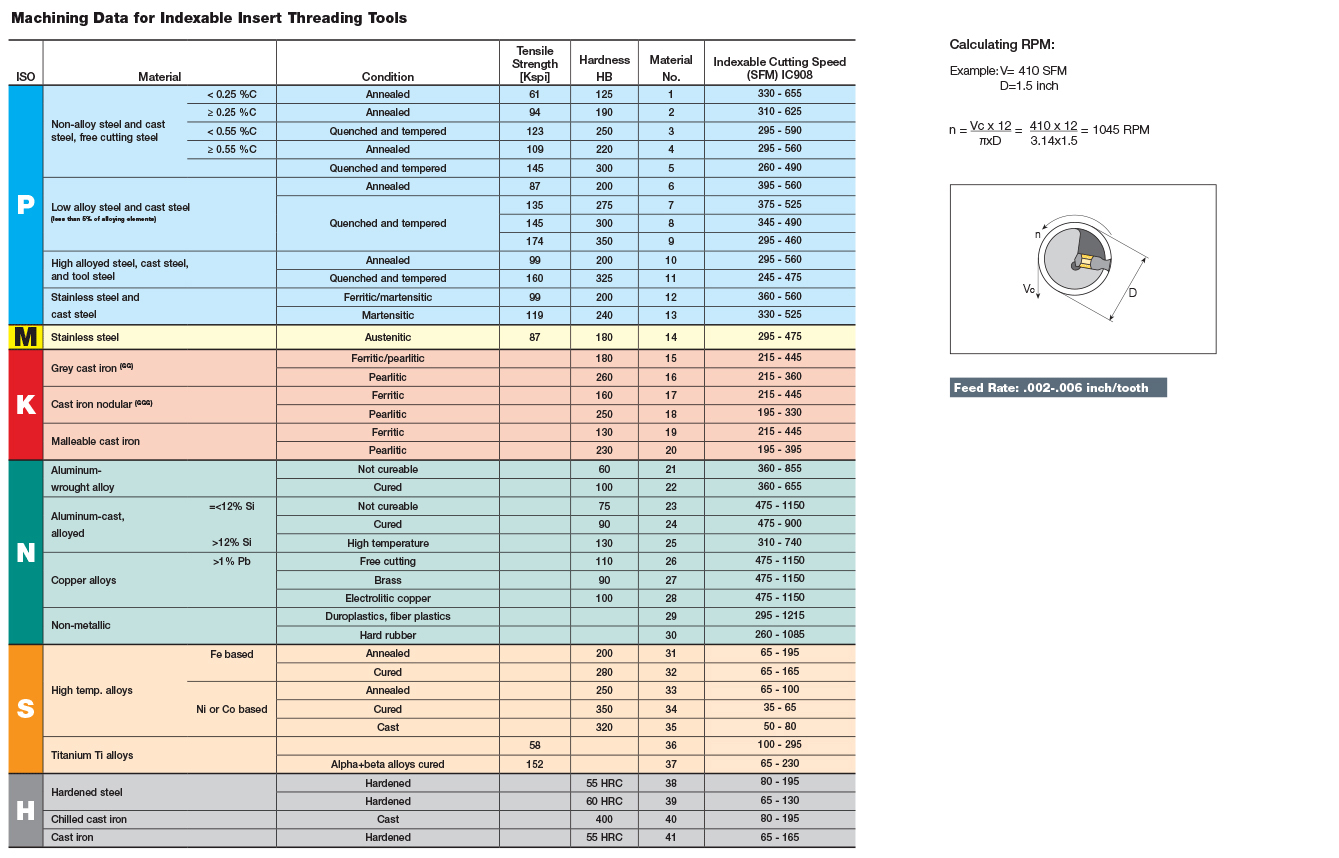

| Remarks | Used for UN, UNC, UNF, UNEF and UNS thread profiles For cutting speed recommendations, Click on More Info |
Shipping Info
Package Weight
0.090
