MT LNHU 1403 E2.50ISO 908
Thread milling inserts for external ISO metric Profile. Used for general engineering.

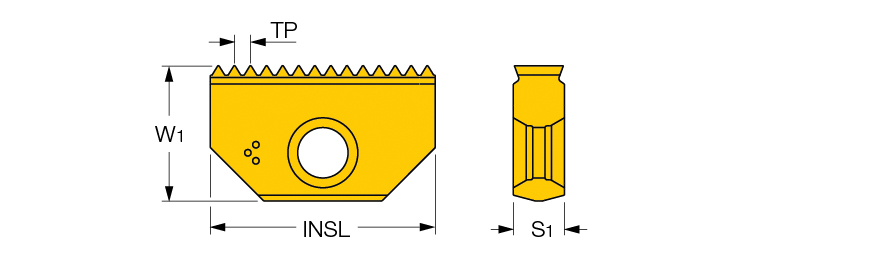

| Thread Standard | THFT | | Shape | 90° Rectangular |
| Thread Pitch (TP) | 2.5 mm | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 0.551″ | Coating | TiAlN |
| Insert Width (W1) | 0.311″ | Tool Type | Threading Regular Inserts |
| Insert Thickness Total (S1) | 0.126″ | Measurement Type | Inch |
| Cutting Position | External | Body Material | Carbide |
| Application | | External Thread Milling | | Thread Form Type (THFT) | M60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Type (TTP_DF2) | EXT |
| Grade | IC908 |
Product Features
| Family Description | Thread milling inserts for external ISO metric Profile. Used for general engineering. | Country of Origin | Israel |
| Remarks | For cutting speed recommendations, Click on More Info. |
Shipping Info
Package Weight
0.015
