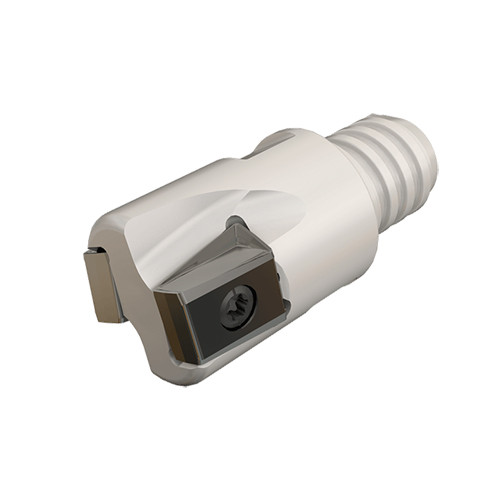

T490 ELN D20-3-MMT12
Indexable End Mill; 20 mm Dia. × 8 mm LOC × 18.7 mm Shank Dia. × 35 mm OAL ; 3 FL ; 90 Degrees

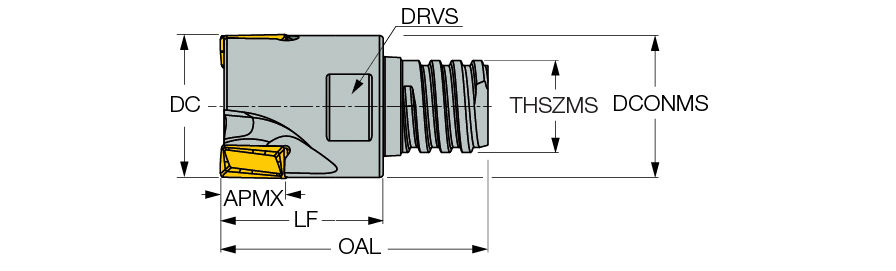

| Cutting Diameter (DC/DCX) | 20 mm | Tool Type | 90° indexable endmills |
| Cutting Diameter (DC) | 20 mm | Connection Thread Nominal Size Machine Side (THSZMS) | T12 |
| Cutting Item Count (CICT) | 3 | Drive Size (DRVS) | 16 mm |
| Depth of Cut Maximum (APMX) | 8 mm | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 35 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 1.7 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 18.7 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | T490 LNMT 0804PNR | Body Material | Steel |
| Weight of Item (WT) | 0.05 Kg | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 22 mm |
Product Features

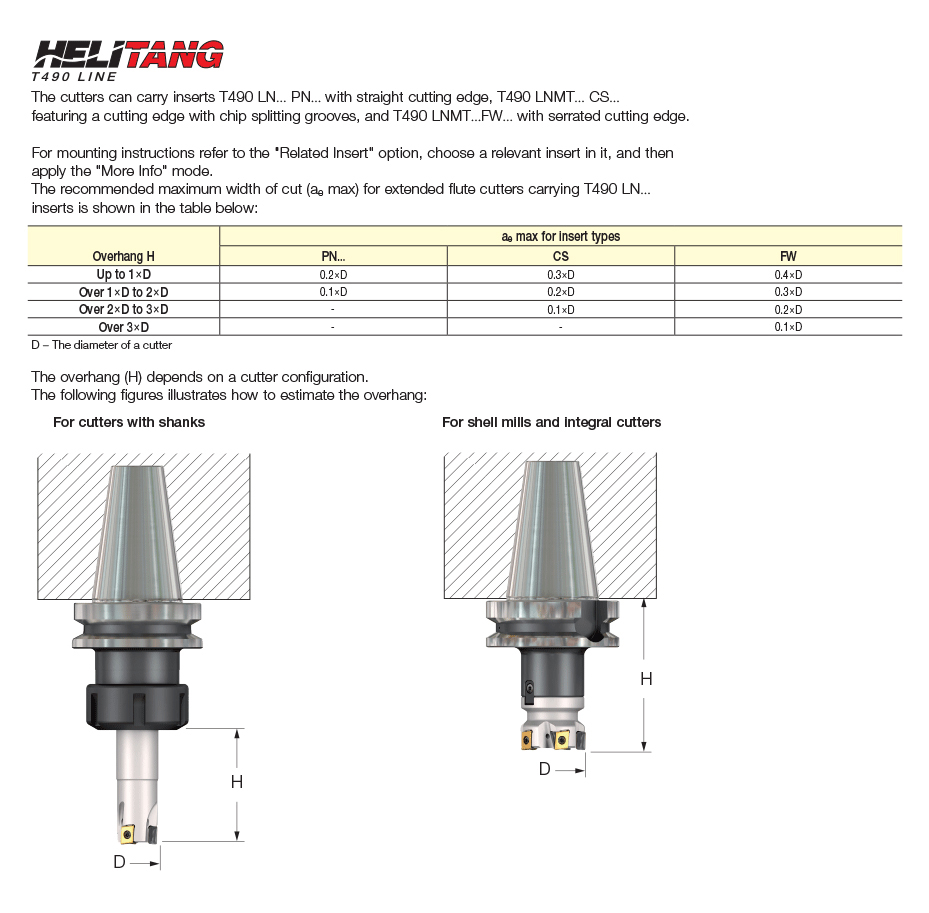

| Family Description | HELITANG, 90° endmills with a MULTI-MASTER threaded adaptation carrying T490 LNMT/LNHT 08... tangentially clamped inserts with 4 helical, 8 mm long cutting edges. | Country of Origin | Israel |
| Remarks | Do not apply lubricant to the MULTI-MASTER threaded connection |
