| Thread Diameter Size (TDZ) | 1/2″ | Thread Tolerance Class (TCTR) | H3 |

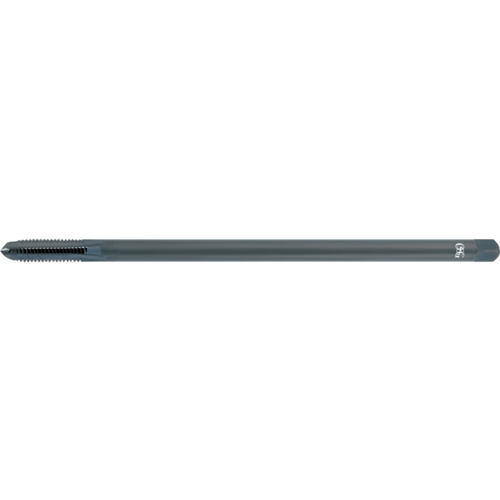

| Threads per Inch (TPI) | 13 | Tool Type | Pulley Tap |
| Thread Standard | NC | Chamfer | 4P-4.5P |
| Overall Length (OAL) | 6″ | Coating | Black Oxide |
| Usable Length (LU) | 2.444″ | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 0.507″ | Style | Plug |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Applicable Material | | Steel | Cast Iron | | Series/List # | 916 |
| Cutting Edge Material | HSS | Thread Size | 1/2″ - 13 |
Product Features
| Remarks | •Steam Oxide Plug Pulley Taps | Country of Origin | Mexico |
Shipping Info
Package Length
6.05000
Package Width
.75000
Package Height
.65000
Package Weight
0.28
