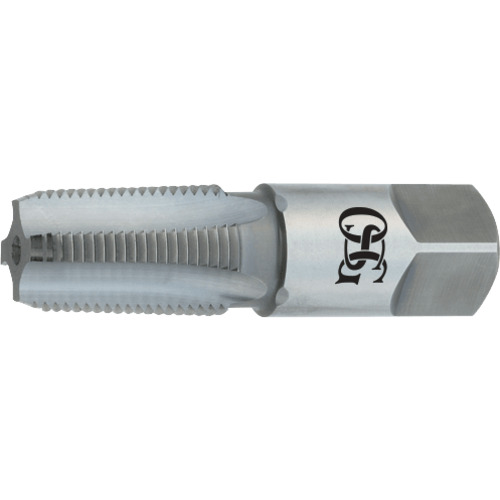

| Tool Type | Taper | Connection Diameter Machine Side (DCONMS) | 0.7″ |
| Thread Diameter Size (TDZ) | 3/8″ | Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 18 | Chamfer | 2.5P |
| Thread Standard | NPTF | Coating | Uncoated |
| Usable Length (LU) | 1.062″ | Cutting Edge Material | HSS |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Overall Length (OAL) | 2-9/16″ | Series/List # | 118 |
| Thread Cutting Part Length (THL) | 1-1/16″ | Thread Size | 3/8″ - 18 |
Product Features
| Remarks | •Taper Pipe Taps Ground Thread •High Speed Steel NPT/ANPT, NPTF | Country of Origin | MEX |
Shipping Info
Package Length
3.35000
Package Width
1.00000
Package Height
.85000
Package Weight
0.2
