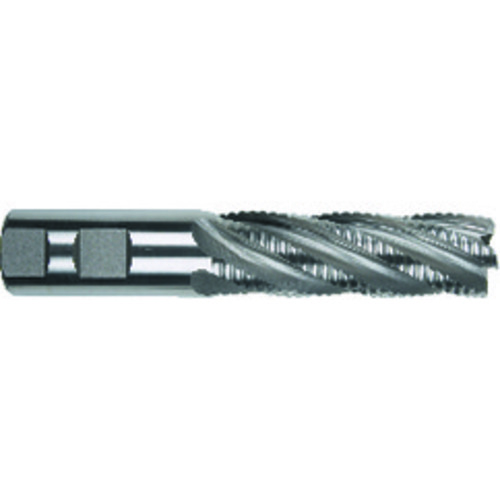

1 1/4″ × 1 1/4″ × 3″ × 5 1/2″ 6 Flute Single End HSSCo Roughing Center Cutting End Mill-Uncoated Series/List #4612
| Cutting Diameter (DC) | 1-1/4″ | Application | Roughing |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Tool Type | Single End |
| Depth of Cut Maximum (APMX) | 3″ | Length Group | Medium |
| Overall Length (OAL) | 5-1/2″ | Flute Type | Coarse Pitch |
| Cutting Edge Material | HSSCo | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Style | Roughing |
| Flute Count (NOF) | 6 | Decimal Equivalent | 1.25″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Center Cutting | Series/List # | 4612 |
| Usable Length (LU) | 3″ |
Product Features
| Remarks | •M-42 8% Cobalt Coarse Tooth Roughing End Mills •Center Cutting 30° Helix •Designed to machine low alloy, high strength steels at faster feed and speed rates • Premium cobalt high speed steel with special heat treatment offering longer tool life • TiN Coating allows increased feeds over uncoated end mills • The high lubricity of TiN improves chip flow, resists galling and edge build up and reduces heat generated in the metal removal process •TiN coating is ideal for a wide range of applications where improved tool life and elevated feeds and speeds are required. | Country of Origin | USA |
Shipping Info
Package Length
7.00000
Package Width
2.00000
Package Height
2.00000
Package Weight
1.57
