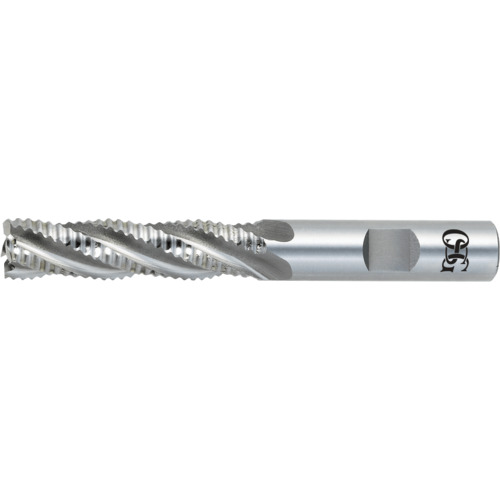

5/8″ Dia. × 5/8″ Shank × 1-5/8″ DOC × 3-3/4″ OAL, HSSCo, Uncoated, Fine, 4 Flute, Solid End Mill
| Cutting Diameter (DC) | 5/8″ | Usable Length (LU) | 1-5/8″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Application | Roughing |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Flute Type | Fine |
| Overall Length (OAL) | 3-3/4″ | Style | Roughing |
| Cutting Edge Material | HSSCo | Decimal Equivalent | 0.625″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | 450 |
| Shank Type | Round |
Product Features
| Remarks | •Roughing Tooth End Mills •8% Cobalt Roughing Coarse Tooth Best for Steel up to 30 HRC • 8% Cobalt Roughing Fine Tooth Best for Material 20–45 HRC | Country of Origin | BR |
Shipping Info
Package Length
3.90000
Package Width
1.00000
Package Height
.95000
Package Weight
0.275
